Key Features
✅
7-in-1 Multi-Mode, All-Round Solution
Flatbed/high-spray/cylinder/crystal label/roll/hot stamping/etching, one machine for all needs
✅
CMYK+W+V1+V2 Printing, Premium Finish
Simultaneous color+white+double varnish, glossy & embossed effects in one pass
✅
420×600mm A2 Size, 180mm Max Height
A2 standard format, 1–180mm adjustable height, fits all material thicknesses
✅
2×18900 HD Heads, 720×1440dpi Resolution
Industrial printheads, precise dot placement, sharp text & fine details
✅
No Plate-Making, One-Piece Printing
Digital direct print, small batches, fast sampling, flexible on-demand production
✅
Intelligent Ink System, Stable & Reliable
1500ml ink tank, white ink stirring, low ink alarm, constant temp/humidity prevents clogging
✅
Auto Height Detection + Precision Transmission
Laser height sensor, XY servo motors + THK rails, stable at high speed
✅
7" Touchscreen + 24/7 Operation, Easy & Efficient
Intuitive touch control, user-friendly, supports 24-hour continuous production
Core Specifications

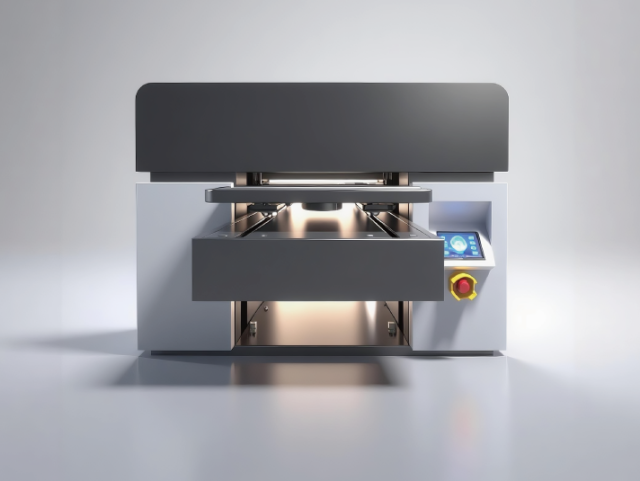

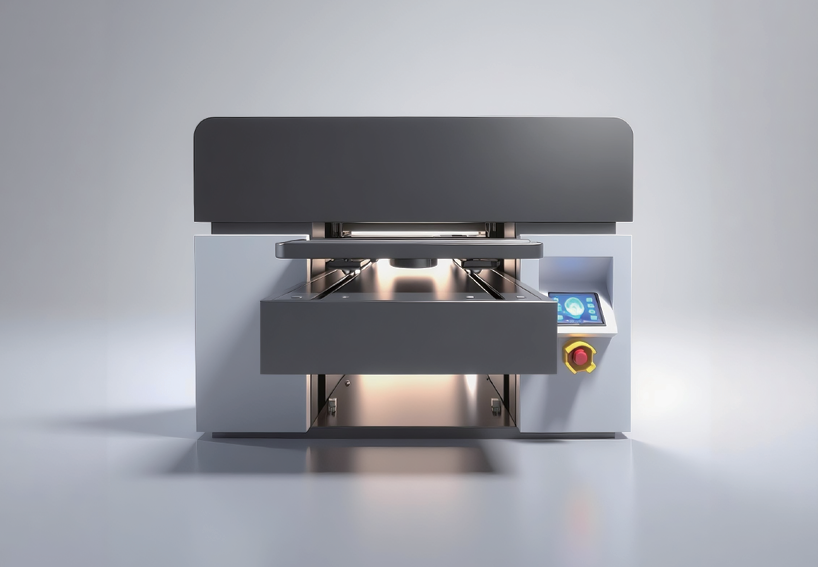

- Model: FX4260 (A2 UV Flatbed Printer)
- Printheads: 2×Epson 18900 HD
- Print Area: 420×600mm
- Print Height: 1–180mm (customizable)
- Resolution: 720×1440dpi
- Print Speed: 1–2㎡/h
- Colors: CMYK+W+V1+V2 (8 colors)
- Ink Type: UV curable ink
- Curing: Air-cooled UV lamp
- Ink Supply: 1500ml, constant temp/pressure, white ink stirring
- System: KNFUN, Maintop/Firey software
- Transmission: XY servo motors, THK rails, ball screw
- Interface: 7" touchscreen
- Connectivity: Gigabit Ethernet
- Power: 220VAC±10%, 50/60Hz, 3500W
- Power Consumption: 200–800W
- Environment: 15–32℃, RH 40%–65%
- Dimensions: 900×1100×660mm
- Weight: 100kg
Applicable Materials
Glass, metal, acrylic, PVC, crystal labels, wood, leather, ceramic, plastic, handicrafts, signs, cylinders
ApplicationsGift customization | Handicrafts | Crystal labels | Cylinders (tumblers/bottles) | Signage | Leather printing | Small-batch production | DIY studio
