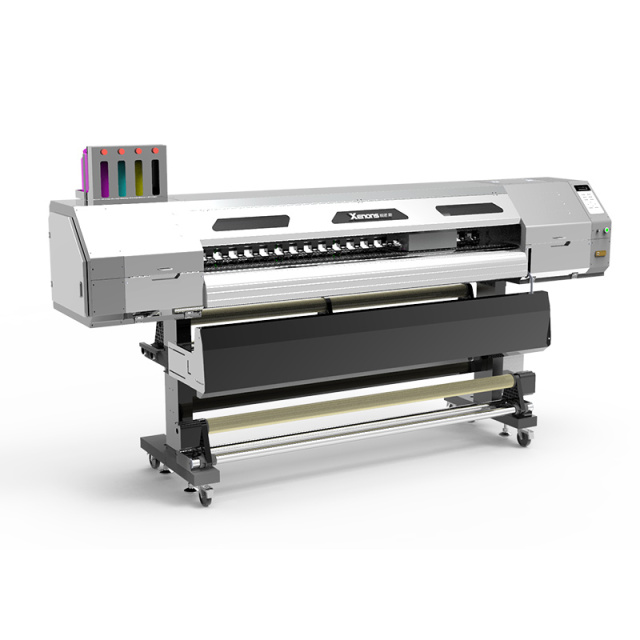

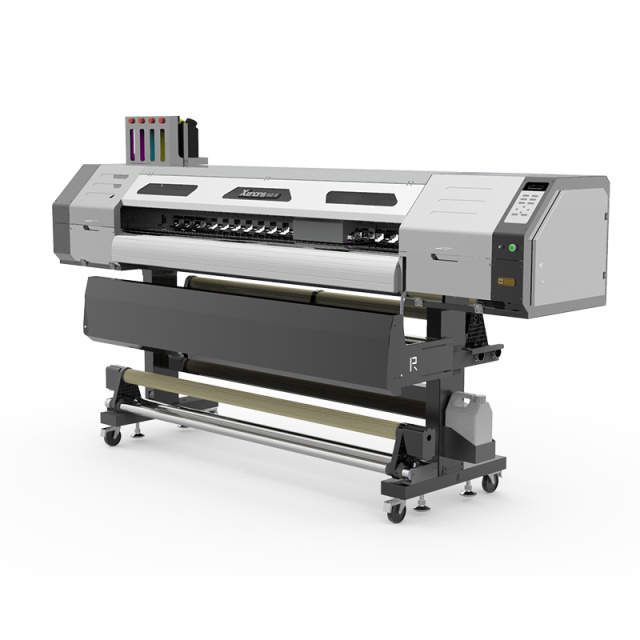

X4-740-4H 1.8m Eco-solvent Printer with 4 i3200 heads

Hi-Volume production for Personalized advertising and textile/apparel use. Printhead: EPSON i3200 * 4 Productivity: 80-180 sqm/h Ink Set: CMYK Drop Volume: 2.5pl Print Size: 1800mm Resolution: 3200dpi Ink: Dye Sublimation, Water base.

SPECIFICATION

FEATURES

HIGH-SPEED & HIGH-QUALITY PRINTING AT THE SAME TIME WITH XENONS ECO SOLVENT PRINTER


XENONS is a brand new 1.8m large format Indoor & Outdoor High Quality Eco Solvent digital inkjet Printer,
Supports 4 Color CMYK or 6 Color YMCK+LM+LC and 8 Color options with speeds up to 180 sqft/hr.
Ideal for a large range of Eco solvent applications like Canvas, SAV, PVC Banner, Backlit Film, Window Film, Fabric - both Eco Solvent & Solvent Base.

Maximum output speed of 180sqm/h
With its staggered 4 EPSON i3200 printhead, Xenons Coltex X4-740-4H model suitable for any work,
combine a high speed 180sqm/h with high quality 2.5pl. That speed is higher previous EPSON printhead printers.
Mini Jumbo Roll media system
This media system support to load a mini  jumbo roll transfer paper about 1500m,
Reduces the cost per square meter and shortens the downtime due to media replacement in comparison to smaller transfer paper rolls.
Auto ink supply system
An automation ink supply system enables you load 3.5L inks per color,
Reduce the running cost and the downtime  due to ink replacement,  The ink alarm system helps fill the ink in advance.
An Easy-to-use system
Equipped with automatic capping and cleaning system, minimize the need to call an engineer.
Variable dots printing
Research has shown that the level of grayscale used in an image contribute considerably to its perceived quality,
more so than pure dpi resolution. The larger dots enhanced a superior color,
while the smallest dots providing gradation equivalent to a much higher resolution.
Efficient data algorithm reduce and correct banding
The special data algorithm enable the software analysis the data and reproduce the output method automatically minimizes ink
drying
times on substrates, and stepping error compensation, eliminating color banding effects. Depending on substrates and design,
the o-
ptimal percentage of feathering can achieve 20~80% speed increases avoiding the speed reductions caused by adding additional full
passes
Intelligent Job management
Print meters setting, printing record management,
color mapping function and ink calculation functions make sure an efficient job management.
