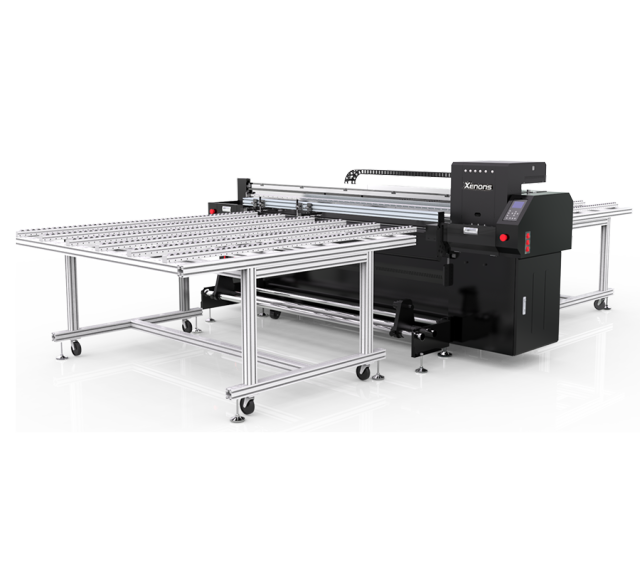

X180-1.8m- Hybrid UV Printer

X180, 1.8m Rioch GEN5 UV hybrid offers both flatbed and roll-fed printing in a single device.
Printing CMYK and White inks on virtually any substrate up to a 30mm thick, the X180 is capable of producing a massive range of large-format graphics.

SPECIFICATION

OVERVIEW

X180 HYBRID : DELIVERS SUPERSPEED VERSATILE UV PERFORMANCE AT UPTO 55 SQM/HRX180 HYBRID is a 1.88 M UV Flatbed Roll to Roll Hybrid printer that delivers fast and versatile UV performance.
This UV printer enables super speed production with speed up to 55 square meters per hour. This GUV hybrid printer from the Xenons is engineered for high-endurance work and low running costs to deliver high-quality print for a long period of time. This versatile printer enlarges capabilities and print business possibilities towards high growth and a higher return on investment (ROI). The UV hybrid roll to roll printer can print on substrates like ACP, foam, board, flute board, glass, ceramic tiles, wood, and on a wide range of vinyl and flexible media. This digital UV hybrid printer offers a variety of applications to help your print business grow.
MICRO-FEATHERING TECHNOLOGY
Rely on the algorithm to disperse the arrangement of ink dots to compensate for paper feeding errors and eliminate the edge phenomenon of the printing belt.

VARIABLE INK DROP TECHNOLOGY
Generates 3 dot types for smoother gradation, vivid colors and sharp images.
Excellent vivid details in mid tone areas.

ORIGINAL INK
The works printed with the original ink of Xenons can get more vivid colors and make the life elements in the picture come to life.

PROPRIETORY RIP DRIVER
User-friendly and easy-use color controls to manage colors.Smoother gradations, vibrant colors for superior print quality.Faster file-processing for greater time-saving and increased productivity

VARNISH EFFECT
Fully automatic color printing and varnishing process simultaneously.

WHITE, COLOR AND VARNISH PRINTING AT THE SAME TIME
White, color, and varnish are printed at the same time, and multiple colors can be printed at a time, which can enhance the gloss of the picture and enhance the vividness of colors

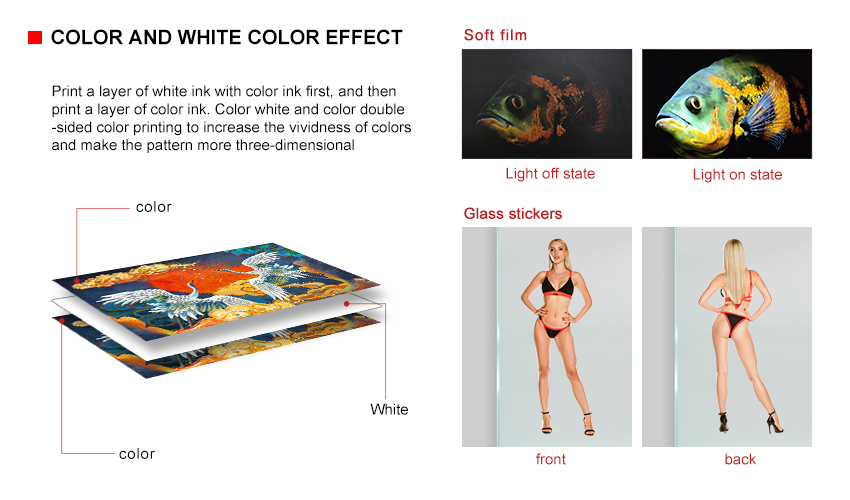

COLOR AND WHITE COLOR EFFECT
Print a layer of white ink with color ink first, and then print a layer of color ink. Color white and color double-sided color printing to increase the vividness of colors and make the pattern more three-dimensional

Technical Specifications:

Item Specification
Effective Max. Print Width 1800 mm
Ink Droplet 7–21 pl, grayscale variable droplet
Resolution Up to 360 × 2400 dpi
Color Configuration CMYK + W / CMYK + Lc Lm + W (Varnish V optional
Ink Type UV LED curable ink
Ink Supply System 3L bulk continuous ink supply with auto ink refilling
Curing Unit Dual groups water-cooled UV-LED curing lamps
Print Speed (HD Mode) ≈35 ㎡/h
Print Speed (High-Speed Production Mode) Max. 55 ㎡/h
Roll Media Car sticker, backlit banner, leather, wallpaper, soft film, PET, PVC
Flat Media Acrylic, aluminum composite panel, wood board, MDF, glass, ceramic tile, cardboard
Max. Board Thickness Approx. 50 mm
Flatbed Table Detachable flatbed platform
Data Interface USB3.0 + Gigabit Ethernet
Control Software YPS (YiliJet / Xenons Cloud Printing Control System), compatible with Photoprint & FlexiPRINT
Printhead Protection Printhead anti-collision sensor
Print Recovery Resume print after power failure
Drive & Encoder Linear maglev motor drive, magnetic grating encoder
Adsorption Platform Multi-zone vacuum adsorption platform
Roll Handling uto tension control for unwinding & rewinding
