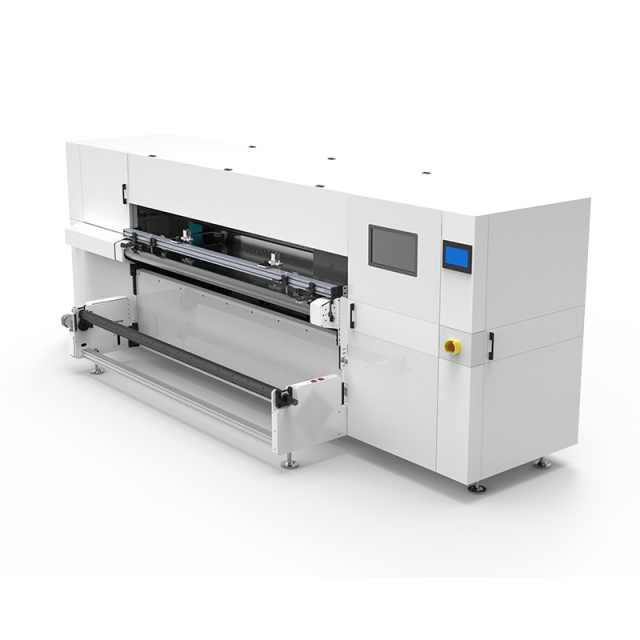

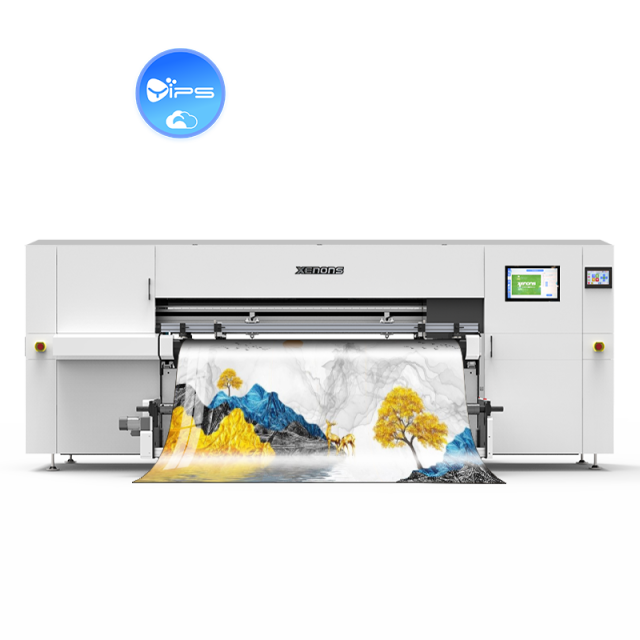

XJ2000 2.2m UV roll to roll printer with 8 i3200/G6 heads

FEATURES

HIGH-SPEED & HIGH-QUALITY PERSONIFYING UV PRINTING WITH UV LARGE FORMAT XENONS PRINTER

Unique 5-layer color printing mode, can fully customize the color of the picture with or without lighting, customize day and night
The printing speed exceeds 24 sq m/hour in the color and white color 3-layer printing mode, and even in the high-precision printing mode that prints five layers of colors at the same time,
the printing speed exceeds 15 square meters per hour.
Variable color configuration + Grayscale Print mode
Variable configuration to satifsy different customers for high speed,high resolution,white application request. True grayscale printing,drop size from 7pl to 21pl,
which makes both solid color and color gradation available
Anti-crash Sensor,Resume print after E-stop
The safely anti-crash sensor can detect the media circumstance before hand and protect the print heads from a crush hazard.After that,you can resume printer,which will help you save media.
Automatic Take up&Feeding System
Rotate speed adjustable motor & pneumatic shaft can be adapted to various thickness substrates.
Ink supply system with level alarm function
It provides stable and sustainable ink supply,When a color is short of ink, it will automatically alarm to remind us that we need to add ink.


In multi-layer technology, print heads are arranged in staggered or inline format. This means that the multi-layer technology
offers unbeatable quality by mixing appropriate portion of white with other color to enhance the visibility of the print. This can be proved best for the backlit print application.

The multi-layer technology offers the following printing modes of white color:

• Pre White : Printing white underneath the main color.
• Post White : Printing white on the top of the color.
• Sandwich White : Printing white in between the main color like Color-White-Color.
• Varnish：print varnish above the main color
• 5 layers of color：Color-White-Black-White-Color
